ASRock 880GM-LE Socket AM3 Micro ATX AMD Motherboard. ASRock 880GM-LE Motherboard Features: AMD 880G / SB710 Chipset, DDR3 Support and Integrated AMD Radeon HD 4250 graphic adapter.



SPECIFICATIONS:

MANUFACTURER:
- ASRock

MODEL NUMBER:
- 880GM-LE

CPU:
- Socket AM3 processors: AMD Phenom II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Six-Core CPU Ready
- Supports AMD OverDrive™ with ACC feature (Advanced Clock Calibration)
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology

CHIPSET:
- Northbridge: AMD 880G
- Southbridge: AMD SB710

MEMORY:
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1800(OC)/1600(OC)/1333/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB

BIOS:
- 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- VCCM, NB Voltage Multi-adjustment

GRAPHICS:
- Integrated AMD Radeon HD 4250 graphics
- DX10.1 class iGPU, Shader Model 4.1
- Max. shared memory 512MB
- Dual VGA Output: Support DVI-D and D-Sub ports by independent display controllers
- Supports Dual-link DVI with max. resolution up to 2560x1600 @ 75Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 85Hz
- Supports HDCP function with DVI-D port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI-D port

AUDIO:
- 5.1 CH HD Audio (ALC662 Audio Codec)

LAN:
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN

SLOTS:
- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
- Supports ATI™ Hybrid CrossFireX™

CONNECTORS:
- 6 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and "Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Print port header
- 1 x COM port header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

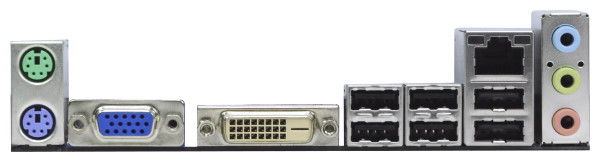

REAR PANEL I/O:
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone

UNIQUE FEATURES:
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Turbo UCC

ACCESSORIES:
- Quick Installation Guide, Support CD, I/O Shield
- ATA 133 Cable
- 2 x SATA Data Cables (optional)

HARDWARE MONITOR
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

FORM FACTOR:
- Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
