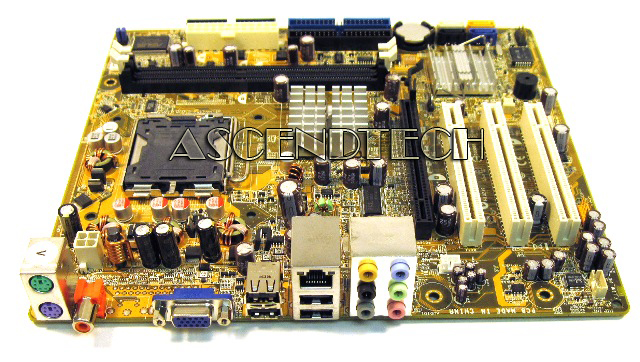

ASUS P5RC-LE Desktop Motherboard. ASUS meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.
Please Note: This is an OEM Motherboard And It Does Not Come With Rear I/O Shield (Back-Plate) Cover For The Case.
Specifications:
Motherboard manufacturer's name: ASUS P5RC-LE
Socket: 775
Supports the following processors:
Pentium D 900 series Dual Core up to 950 (Pressler, 65nm)
Pentium D 800 series Dual Core (Smithfield, 90nm)
Pentium 4 601 series up to 661 (Cedar Mill, 65nm)
Pentium 4 600 series up to 650 (Prescott, 90nm)
Pentium 4 500 series up to 551 (Prescott, 90nm)
Celeron D up to 360 (Cedar Mill, 65nm)
Celeron D up to 355 (Prescott, 90nm)
Front-side bus (FSB):
800/533 MHz
Chipset:
ATI Radeon Xpress 200 for Intel Processors
Form factor:
Micro-ATX: 9.6 in X 8.6 in
Memory:
Two 184-pin DDR DIMM sockets
Supports PC 3200 (400 MHz), DDR DIMMs
Expansion slots:
Three PCI
One PCI Express x16 graphics
Video graphics:
Integrated
Supports PCI Express x16 graphics cards
Serial ATA:
4 SATA connectors
Each connector supports 1 serial ATA-150 disk drive
Parallel ATA:
2 PATA connectors
Each connector supports 2 Parallel ATA disk drives on each PATA ribbon cable (4 drives total)
Onboard audio:
Built-in High Definition 8 channel audio
Realtek ALC883 Audio CODEC
Onboard LAN:
Realtek RTL8101L
10/100 Mbps Fast Ethernet
Back panel I/0:
One PS/2 mouse port (green)
One PS/2 keyboard port (purple)
One coaxial SPDIF out
One VGA out
Four USB 2.0
One RJ-45 networking port
Audio ports:
line in (light blue)
microphone (pink)
line out (lime)
center/subwoofer (yellow orange)
side speaker out (gray)
rear speaker out (black)
Internal connectors:
One 24-pin ATX power connector
One 4-pin ATX power connector
Two PATA connectors
Four SATA connectors
One floppy drive connector
Two 12v fan connectors for CPU fan and PC fan
One 9-pin header for power button, reset button, power LED, and HDD LED
One SPDIF-Audio output connector
One line input connector
One 9-pin audio header for headphone-out and microphone-in
Two USB 2.0 connectors supporting 4 additional USB 2.0 ports
